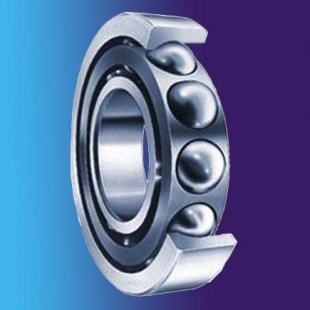

Angular Contact Ball Bearing

Angular Contact Ball Bearing

Angular contact bearings have raceways that are displaced to accommodate combined loads, i.e. simultaneously acting radial and axial loads in one direction only. The amount of axial load the bearing can carry increases as the contact angle increases.





Bearing type Dimensions(mm) Weight kg NOTE
d D B
7004□ 20 42 12 0.070
  1. α=15。 □=c
  2. α=25。 □=AC
  3. α=40。 □=B
          α:CONTACT ANGLE
7005□ 25 47 12 0.080
7006□ 30 55 13 0.120
7007□ 35 62 14 0.160
7008□ 40 68 15 0.195
7009□ 45 75 16 0.250
7010□ 50 80 16 0.270
7204□ 20 47 14 0.116
7205□ 25 52 15 0.144
7206□ 30 62 16 0.217
7207□ 35 72 17 0.312
7208□ 40 80 18 0.404
7209□ 45 85 19 0.456
7210□ 50 90 20 0.516
7304□ 20 52 15 0.159
7305□ 25 62 17 0.254
7306□ 30 72 19 0.383
7307□ 35 80 21 0.507
7308□ 40 90 23 0.695
7309□ 45 100 25 0.927
7310□ 50 110 27 1.200
