Single -Row Tapered Roller Bearings

A.Metric Series

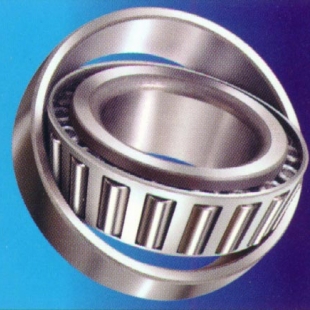

Tapered Roller Bearing

Metric Series

These bearings have tapered inner and outer raceways between which tapered rollers arranged. If extended, the tapered surfaces converge toward asingle point on the bearing axis. The tapered design makes these bearings particularly suited for combined loads(radial & axial).the axial load carrying capacity is determined by the contact angle of the bearing.

TSB No.	d (mm)	D (mm)	B (mm)	C (mm)	T (mm)	Basic static load-kn	Basic dynamic load-kn	Weight (kg)
30203	17	40	12	11	13.25	21.8	20.8	0.079
30204	20	47	14	12	15.25	30.5	28.2	0.126
30205	25	52	15	13	16.25	37.0	32.2	0154
30206	30	62	16	14	17.25	50.5	43.2	0.231
30207	35	72	17	15	18.25	63.5	54.2	0.331
30208	40	80	18	16	19.75	74.0	63.0	0.422
30209	45	85	19	16	20.75	83.5	67.8	0.474
30210	50	90	20	17	21.75	92.0	73.2	0.529
30211	55	100	21	18	22.75	115	90.8	0.713
30212	60	110	22	19	23.75	130	102	0.904
30213	65	120	23	20	24.75	152	120	1.130
30214	70	125	24	21	26.25	175	132	1.260
30215	75	130	25	22	27.25	185	138	1.360
30304	20	52	15	13	16.25	33.2	33.0	0.165
30305	25	62	17	15	18.25	48.0	46.8	0.263
30306	30	72	19	16	20.75	63.0	59.0	0.387
30307	35	80	21	18	22.75	82.5	75.2	0.515
30308	40	90	23	20	25.25	108	90.8	0.747
30309	45	100	25	22	27.25	130	108	0.984
30310	50	110	27	23	29.25	158	130	1.280
30311	55	120	29	25	31.50	188	152	1.630
30312	60	130	31	26	33.50	210	170	1.990
30313	65	140	33	28	36.00	242	195	2.440
30314	70	150	35	30	38.00	272	218	2.980
32206	30	62	20	17	21.25	64.0	54.5	0.301
32207	35	72	23	19	24.25	87.0	72.5	0.457
32208	40	80	23	19	24.75	93.5	79.5	0.558
32209	45	85	23	19	24.75	100	82.0	0.607
32210	50	90	23	19	24.75	109	87.5	0.648
32211	55	100	25	21	26.75	134	108	0.876
32212	60	110	28	24	29.75	164	130	1.180
32213	65	120	31	27	32.75	206	159	1.580
32214	70	125	31	27	33.25	220	166	1.680
32215	75	130	31	27	33.25	224	168	1.740
32304	20	52	21	18	22.25	48.5	46.5	0.245
32305	25	62	24	20	25.25	64.5	61.5	0.381
32306	30	72	27	23	28.75	90.0	81.0	0.583
32307	35	80	31	25	32.75	115	101	0.787
32308	40	90	33	27	35.25	150	122	1.080
32309	45	100	36	30	38.25	191	154	1.460
32310	50	110	40	33	42.25	232	184	1.920
32311	55	120	43	35	45.50	275	215	2.440
32312	60	130	46	37	48.50	315	244	3.020
32313	65	140	48	39	51.00	350	273	3.660
32314	70	150	51	42	54.00	405	310	4.460
32315	75	160	55	45	58.00	470	355	5.350
30315	75	160	37	31	40.00	318	252	3.570
