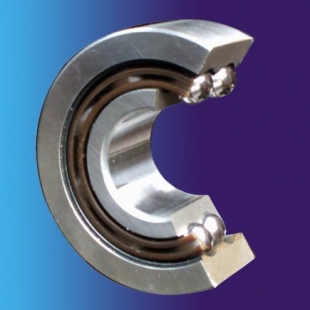

Double Row Series Deep Groove Ball Bearing
关键词：Double Row Series Deep Groove Ball Bearing
Double Row Series Deep Groove Ball Bearing
Double Row Series Deep Groove Ball Bearing
| TSB No. | I.D | O.D | width | BASIC DYNAMIC LOAD-KN | |||
| Metric (mm) | Tol. (μm) | Metric (mm) | Tol. (μm) | OPEN (mm) | SHIELDS SEALS(mm) | ||
| 5200 | 10 | 0/-8 | 30 | 0/-9 | 14.3 | 14.3 | 1.996 |
| 5201 | 12 | 0/-8 | 32 | 0/-11 | 15.9 | 15.9 | 2.707 |
| 5202 | 15 | 0/-8 | 35 | 0/-11 | 15.9 | 15.9 | 3.005 |
| 5203 | 17 | 0/-8 | 40 | 0/-11 | 17.5 | 17.5 | 4.014 |
| 5204 | 20 | 0/-10 | 47 | 0/-11 | 20.6 | 20.6 | 6.727 |
| 5205 | 25 | 0/-10 | 52 | 0/-13 | 20.6 | 20.6 | 6.832 |
| 5206 | 30 | 0/-10 | 62 | 0/-13 | 23.8 | 23.8 | 8.526 |
| 5207 | 35 | 0/-12 | 72 | 0/-13 | 27.0 | 27.0 | 12.007 |
| 5208 | 40 | 0/-12 | 80 | 0/-13 | 30.2 | 30.2 | 14.669 |
| 5300 | 10 | 0/-8 | 35 | 0/-11 | 19.0 | 19.0 | 3.619 |
| 5301 | 12 | 0/-8 | 37 | 0/-11 | 19.0 | 19.0 | 3.694 |
| 5302 | 15 | 0/-8 | 42 | 0/-11 | 19.0 | 19.0 | 4.223 |
| 5303 | 17 | 0/-8 | 47 | 0/-11 | 22.2 | 22.2 | 5.983 |
| 5304 | 20 | 0/-10 | 52 | 0/-13 | 22.2 | 22.2 | 6.415 |
| 5305 | 25 | 0/-10 | 62 | 0/-13 | 25.4 | 25.4 | 8.975 |
| 5306 | 30 | 0/-10 | 72 | 0/-13 | 30.2 | 30.2 | 14.518 |
| 5307 | 35 | 0/-12 | 80 | 0/-13 | 34.9 | 34.9 | 18.518 |
| 5308 | 40 | 0/-12 | 90 | 0/-15 | 36.5 | 36.5 | 22.275 |
