Thrust Ball Bearing

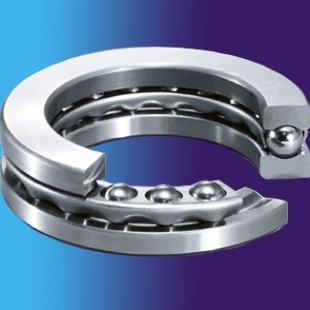

Thrust ball bearings are suitable for the accommodation of axial loads in one direction and can locate a shaft in one direction. They cannot be sujected to any radial loads. The bearin comprises a shaft washer with raceway groove. a ball and cage thrust assembly and a housing washer with a raceway groove.

推力球轴承只能承受轴向负荷，不能承受径向负荷，只能作轴向定位，不能作径向定位。因此需与向心轴承配合使用，且允许转速较低，不能用于高速旋转的机械。

TSB No.	Bore.		Dia		Height	BASIC STATIC LOAD-KN	BASIC DYNAMIC LOAD-KN	WEIGHT(KG)
TSB No.	d (mm)	d1(mm)	D (mm)	D1.(mm)	T (mm)	BASIC STATIC LOAD-KN	BASIC DYNAMIC LOAD-KN	WEIGHT(KG)
51100	10	11	24	24	9	14.0	10.0	0.019
51101	12	13	26	26	9	15.2	10.2	0.021
51102	15	16	28	28	9	16.8	10.5	0.022
51103	17	18	30	30	9	18.2	10.8	0.024
51104	20	21	35	35	10	24.5	14.2	0.036
51105	25	26	42	42	11	30.2	15.2	0.055
51106	30	32	47	47	11	34.2	16.0	0.062
51107	35	37	52	52	12	41.5	18.2	0.077
51108	40	42	60	60	13	62.8	26.8	0.125
51109	45	47	65	65	14	66.0	27.0	0.140
51110	50	52	70	70	14	69.2	27.2	0.150
51111	55	57	78	78	16	89.2	33.8	0.220
51112	60	62	85	85	17	108.0	40.2	0.270
51113	65	67	90	90	18	112.0	40.5	0.310
51200	10	12	26	26	11	12.5	17.0	0.028
51201	12	14	28	28	11	13.2	19.0	0.031
51202	15	17	32	32	12	16.5	24.8	0.041
51203	17	19	35	35	12	17.0	27.2	0.048
51204	20	22	40	40	14	22.2	37.5	0.075
51205	25	27	47	47	15	27.8	50.5	0.110
51206	30	32	52	52	16	28.0	54.2	0.130
51207	35	37	62	62	18	39.2	78.2	0.210
51208	40	42	68	68	19	47.0	98.2	0.260
51209	45	47	73	73	20	47.8	105	0.300
51210	50	52	78	78	22	48.5	112	0.370
51211	55	57	90	90	25	67.5	158	0.580
51212	60	62	95	95	26	73.5	178	0.660
51213	65	67	100	100	27	74.8	188	0.720
